Tear Resistant PTFE Fiberglass Fabric

发布时间 : 2019-06-01  浏览次数 :
Tear Resistant PTFE Fiberglass fabric, also named as Teflon anti-ripper fabric, is a new type of composite material which is made of glass fiber cloth with special strength and is made of special technology and repeatedly impregnated with high quality polytetrafluoroethylene. The color is mainly natural brown. The texture is mainly plain. Its strength is about twice that of PTFE Teflon coated fiberglass fabric of the same thickness. The thickness is generally 0.13-0.16mm, and the width of the coil can be up to 1.5 meters. It is mainly used in some special coating machines, also used in Edge and joints for certain PTFE Teflon conveyor belts and bonding machine belts.

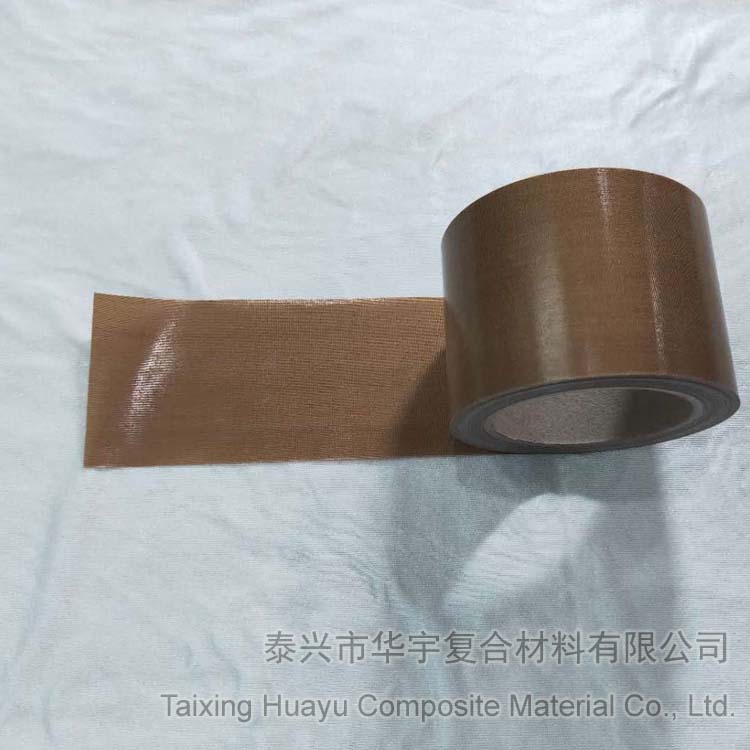

Tear Resistant PTFE Fiberglass Fabric(图1)
Features:
1. Resistant to tearing, high strength. Its strength is about twice that of PTFE coated fiberglass fabric of the same thickness. It can meet certain special production links.
2. Temperature resistance. It is used for low temperature -196 ° C, high temperature 360 ​​° C, weather resistance and anti-aging.
3. Non-adhesive: It is not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
4. Chemical resistant, resistant to strong acids, alkalis, aqua regia and various organic solvents.
5. Low friction coefficient (0.05-0.1), it is the best choice for oil-free self-lubrication.
6. It has high insulation performance (small dielectric constant: 2.6, tangent below 0.0025), UV protection, anti-static.
7. Good dimensional stability (extension coefficient less than 5‰) and high strength. Has good mechanical properties.
8. Drug resistance, non-toxic. Almost resistant to all pharmaceutical items.
9. Fire retardant.
